公司產品

PMBA可控氣氛等溫淬火爐

你的位置：首頁 > 公司產品 > PMBA可控氣氛等溫淬火爐

PMBA 可控氣氛等溫淬火爐

更新：2018/9/27 15:23:11??????點擊：

品牌：???
型號：???

產品介紹

PMBA系列等溫淬火箱式爐
Batch Austempering Quench Furnace

寶華威PMBA系列箱式等溫淬火爐，包含爐頂攪拌風扇，輻射管，密封前室，過渡室，加熱室和等溫淬火槽組成，爐子設計為用于中性淬火，等溫淬火，滲碳，正火，退火和其它熱處理工藝用于熱處理過程中并需要在加熱，保溫，淬火過程在控制氣氛下的專用熱處理設備。設計最大有效最大可裝載毛重5000kgs，包括工裝在內。正常操作溫度設計在787C-930C，其最高操作溫度為950C。

The PMBA series batch austempering quench furnace is a batch type unit equipped with recirculating roof fans, radiant tubes, intermediate purge chamber, enclosed vestibule and integral batch quench tank. The furnace is designed for neutral hardening, austempering and other heat treating processes where a controlled environment is required during the heating and quenching portions of the cycle. Measurable water is adding to the quench tank to enhance quench severity. The batch austempering quench furnace is designed with a normal operating temperature range of 790-927℃ with a maximum temperature up to 950℃. Loading capacity varieties differ from each model from 1500Kg to a max of 5000Kg gross loads.

寶華威公司研制的多用途箱式等溫淬火爐系統由多用爐、清洗機、回火爐、自動裝卸料車、上卸料平臺等組成一套完整的熱處理生產線；
The standard austempering production line would be consisting of Batch Heat/Quench Furnace, Pre-heating furnace, Washing System, Tempering Furnace, Automatic Loading/Unloading Cart, Loading/Unloading Platforms etc.

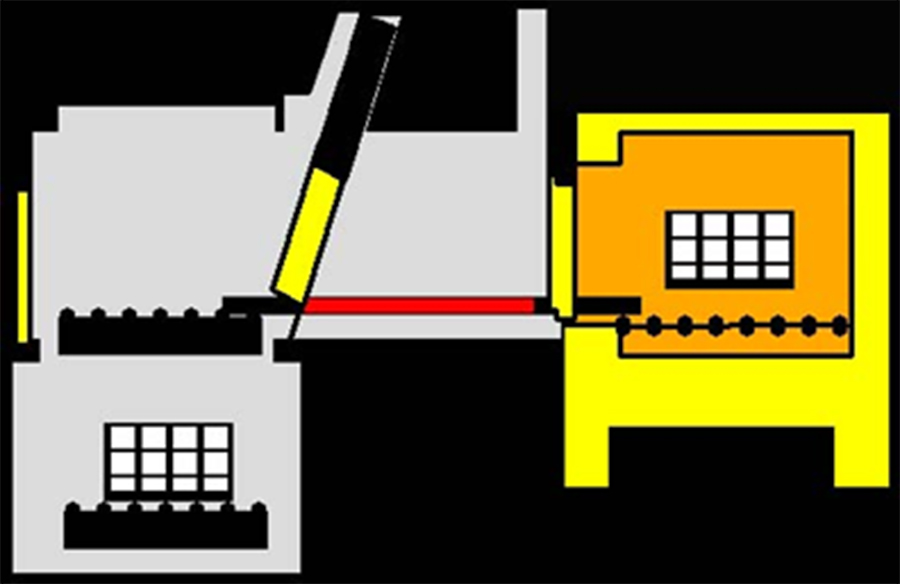

?前室-過渡室-加熱室結構設計
?Three chamber design, Vestibule-Intermediate-Rear chamber design
?鹽槽快速風冷冷卻系統
?Quench tank quick air cooling system
?雙氧探頭控制系統
?Two-probe carbon control
?CQI-9標準
?CQI-9 standard compliance
?西門子PLC控制系統
?Siemens PLC logic control
?進口品牌溫控儀表
?Reliable temp controllers
?進口品牌氣氛控制系統
?Reliable atmosphere control system
?清洗液高中低濃度分段清洗
?Washing solution independent density control, high-medium-low density washing process separately.
?燃?xì)饣螂娂訜峥蛇x式熔鹽槽，配高溫鹽泵
?Gas or Electrical heated salt melting tank with high temp pump.
?高效鹽回收裝置，多層抽屜式設計
?High efficiency salt recovery unit, multi-layer drawer type salt collecting design.
